Interlight

Walls made entirely of glass. Interlight is our chic all-glass solution that creates an open overall impression.

Scroll

Transparency and homogeneity are a matter of course. Make more of your privacy screen: we will be happy to advise you on the possibilities of customised printing or foiling.

Interlight - Room-high single glazing

Interlight is characterised by its particularly delicate and transparent appearance. The profiles are discreetly fixed to the floor or ceiling and are therefore barely visible to the observer. As an alternative to traditional metal profiles, wooden profiles are also available, offering a warm, natural look.

This creates a visually uniform, large-scale glass front with single glazing. In addition, printed or laminated glass offers a wide range of options for privacy, design or branding, without completely losing the system’s transparency.

The system’s own frames – available in either aluminium or wood – can be fitted with glass or wooden door leaves. Furthermore, all-glass sliding doors with various fitting options provide a space-saving yet high-quality door solution, making Interlight an attractive and flexible room divider.

What types of doors are available?

Prefabricated, system-specific light alloy door frames, anodised or coated to RAL standards, or wooden frames for the timber version.

Door variants:

Fitted with pre-hung and surface-treated door leaves:

  • Wooden door type 40 V solid-core door leaf, approx. 40 mm thick, with top panel, HPL laminate or real wood veneer
  • Wooden door type 60 V solid-core door leaf (42 dB), approx. 60 mm thick, with top panel, HPL laminate or real wood veneer
  • Glass-framed door type F: Delicate glass-framed doors 40 mm, frame width 74 mm, up to 40 dB*
  • Aluminium-framed door Type D 60 mm with double glazing
  • Laminated glass door Type B with bonded glazing
  • All-glass doors also available as sliding doors

Door fittings:

  • Handle set in aluminium or stainless steel
  • Medium-duty mortise lock or Dorma glass door lock
  • Three-part, 3-D adjustable, stainless steel or Dorma Junior

Interlight transparent

Discretion can be realised individually with screen printing or foil panelling. The use of glass partitions means that the floor level is retained in its entirety. Interwalls ensure optimum sound insulation in every office space and therefore ideal working conditions.

Product group office walls
Wall thickness 30 mm
Surface Glazing
Sections Aluminium Ev1 anodised
  optional RAL
Glazing 10 mm
  12 mm
  16 mm
Sound insulation 36-42 dB*
Construction glass only
Acoustic systems mounted
Fire protection -

*Laboratory values

Your benefits

· Printed or laminated glass

· Wooden doors

· Glass doors

· Sliding doors

· Acoustic panels

Vertical section
Vertical technical sectional drawing of a narrow partition wall: hatched infill between two perimeter profile housings, profile end caps at the top and bottom with details of seals and fixings, as well as the centre line and section markings
Vertical section of Door Type 55
Vertical cross-section of a partition wall profile: glass pane in an aluminium frame with a seal, fixing groove and reference lines.
Vertical section of Door Type 27
Vertical cross-section of a partition wall profile with a fitted glass panel, perimeter seals, a hollow-chamber cross-section and a detail of the ceiling and floor connections
Horizontal section of Door Type 55

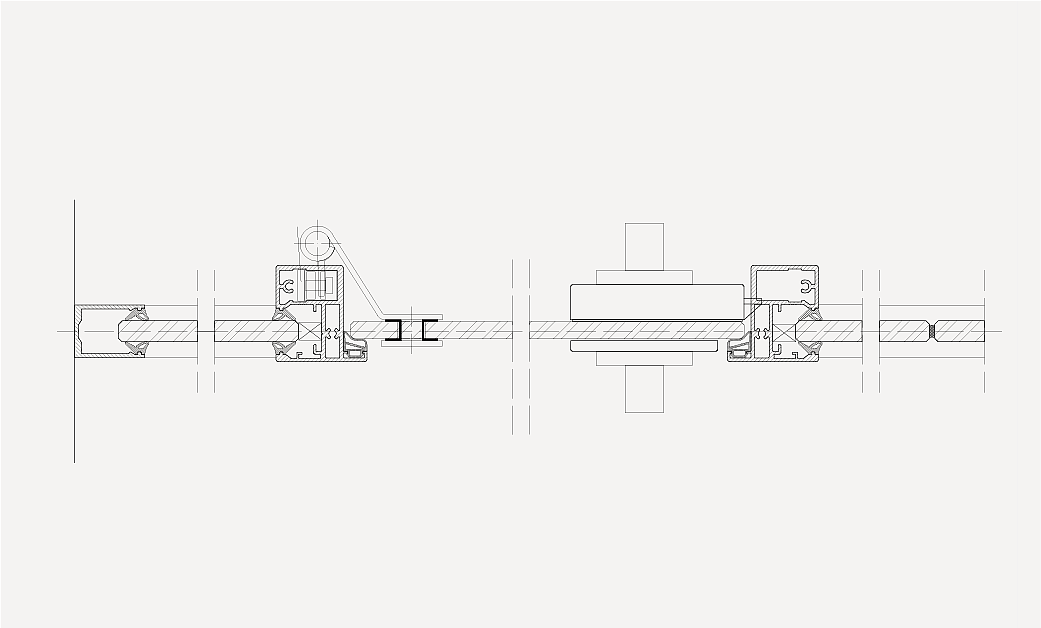

Horizontal sectional drawing of a glazed partition wall comprising glass panes, aluminium profiles and seals.
Horizontal section of Door Type 27
Horizontal technical sectional drawing of a partition wall system comprising two glass panes, profiled aluminium frames, seals, bolted joints and fixing details

Application examples

Office wall Interlight Door Interwand
V27 portal frame with glass frame door.
Interlight office wall in combination with Interplane Interwand
Interlight in combination with ceiling-high door-sets made of solid wood and massiv wood Interplane.
Interlight office wall Interwand
Interlight crystal clear
Bright office space with black-framed all-glass partition walls, frosted panes with orange-coloured hexagons, folding glass wall pushed to the right, table, chairs and planters
Glass wall with black frame and frosted centre, orange hexagonal foils on the glazing, illuminated orange pillar with vertical lettering 'Welcome', light laminate flooring, perforated acoustic ceiling
Corridor with floor-to-ceiling glass partition wall in black profile and recessed glass door, empty office interior, suspended grid ceiling with lights, light-coloured uncoated floor
Bright, open office area with a long wooden table in the middle, colourful stools and wooden benches; several black pendant lights above. Floor-to-ceiling glass partitions with black frames to the left and right, behind which are meeting rooms with tables and chairs.
Curved, floor-to-ceiling glass meeting cubicle with black frame and open glass door; yellow carpet inside, low table with flat screen, four stools and open metal shelves. Glass front with horizontal frosted glass strips and large rectangular ceiling light. Open-plan office outside with grey carpet, exposed ceiling and visible ventilation ducts.
Office corridor with continuous glass partition wall; behind it, meeting room with long white table, several swivel chairs on castors, wall monitor, three windows, rounded glass corner, ceiling lighting, dark carpeting and a white mobile pedestal with red symbol.
Bright office corridor with light-coloured wooden flooring, glass partitions on both sides with satinised foil zone and subtle wave motifs, white interior doors and plants at the end of the corridor.
Hallway with grey carpet; floor-to-ceiling glass partition wall with black floor profile and glass door on the left; vertical wooden slats on the right; white tables and ceiling lights in the office behind it
Large continuous glass partition wall with slim black aluminium profiles and integrated glass door on the left; behind it, empty, bright office space with grey carpet, white walls, supports, square ceiling lights and windows with an outside view.
Two-storey interior: stepped wooden seating steps with handrail on the left, black framed glass door in the centre, floor-to-ceiling glass partitions and upper glass balustrade behind it
Corridor with light-coloured wooden flooring, continuous all-glass partition wall in black metal frame with integrated black door; behind it a meeting room with conference table, chairs and linear ceiling lights
Office corridor with grey carpet; upholstered partition wall on the left; continuous glass wall with dark metal frame and single-leaf glass door on the right; large potted tree, two office chairs and a workstation behind it; green emergency exit sign and fire alarm on the left wall
Glass partition wall with black metal frame and single-leaf glass door; behind it, office space with shelves, desks, blue carpet and suspended grid ceiling.
Glass partition wall with narrow black frame and two wood-panelled doors; behind it, white office space with wide photo panels, carpeting and ceiling spotlights
Leere, helle Bürofläche mit grauem Teppich, raumhohen Glas-Trennwänden mit Holzrahmen und Edelstahlgriffen, punktierten Sichtmarkierungen und einem weißen Stützpfeiler im Vordergrund

Interlight Nature

Walls made entirely of glass, with no frames. Interlight Holz is a stylish all-glass solution; the interplay of glass and wood creates a natural overall look. Wooden surfaces create a pleasant sense of space.

Product group Office walls
Wall thickness 60 mm
Surface Glass
Profiles Wood
Glazing 10 mm
  12 mm
  16 mm
Sound insulation 36-41 dB*
Construction glass only
Acoustic systems mounted
Fire protection -

*Laboratory values

Application examples

Interlight office walls wood crystal clear
Interlight all-glass solution with wooden profiles
Large room with floor-to-ceiling glass partition wall and recessed wooden door; interior walls as vertical wooden slats, visible light wooden ceiling beams and dark grey carpet.
Three light-coloured wooden interior doors with silver lever handles in a floor-to-ceiling glass partition wall; office with blue carpet, ceiling and desk in the background.
Interior with frameless, floor-to-ceiling glass partitions; an interior wooden door in a white wall on the left; blue carpeting, ceiling lights and ventilation diffusers; window on the right; cardboard remnants on the floor.
Multi-panel glass partition with frosted centre zone, flanked by two light-coloured wooden doors. Desk with visible cables, carpet, ceiling lights behind the glazing; fire extinguisher sign on the wall to the left.
Glass partition wall with narrow black frame and two wood-decorated doors; behind it two rooms with wide, colourful wall motifs, suspended grid ceiling and carpeted floor.

Technical drawings

Two side-by-side technical longitudinal sections in black and white; vertical, hatched panels/elements; rectangular profile areas at the top and bottom edges; hatched ceiling and floor structures; dimension lines and figures such as 3000, 2718, 57, 60, 70.
Cross-section of a technical building detail: two parallel, profiled component cross-sections with hatching and dimensions (50, 519, 49); wall connection with insulation and masonry hatching on the right.
